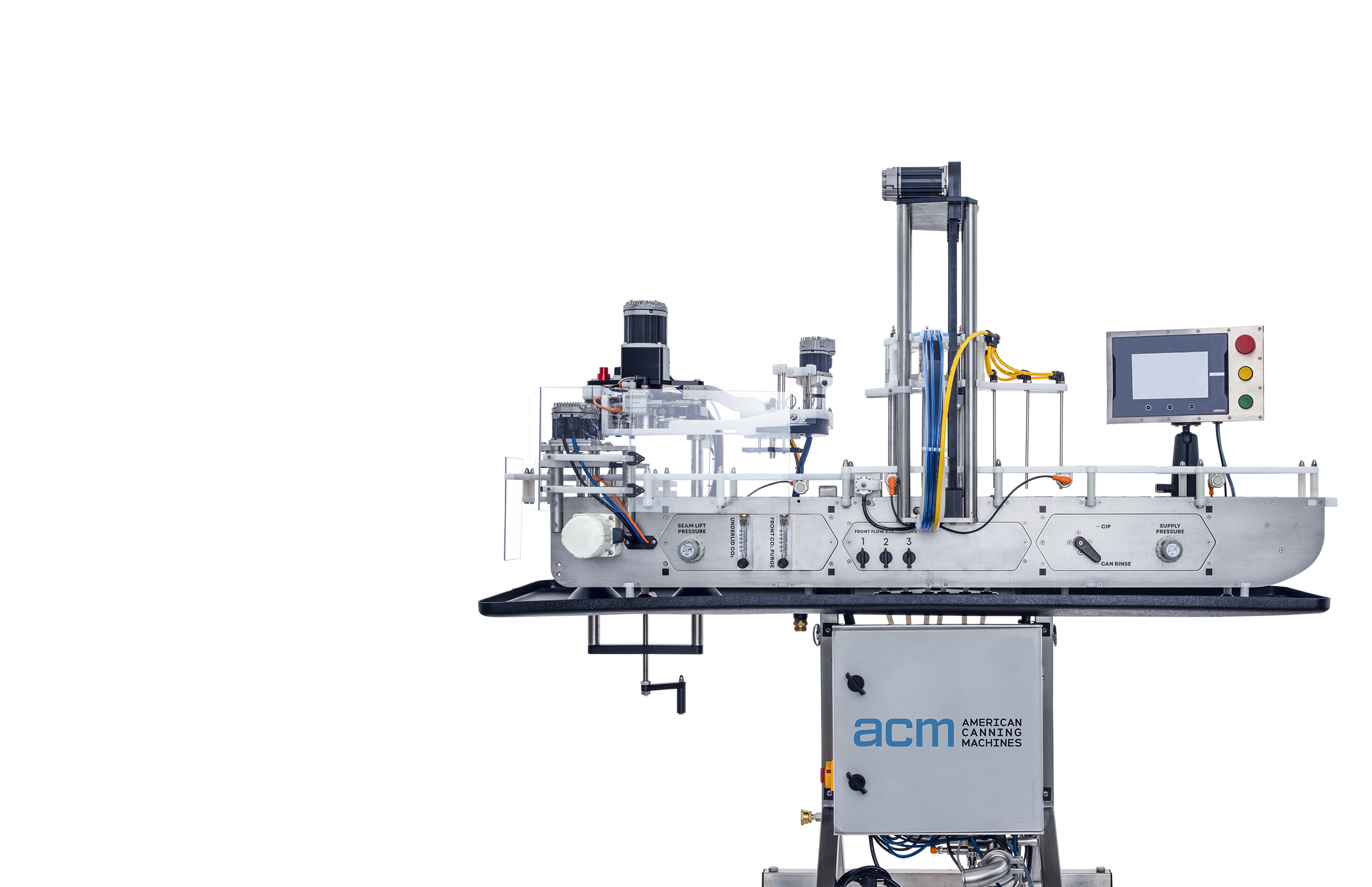

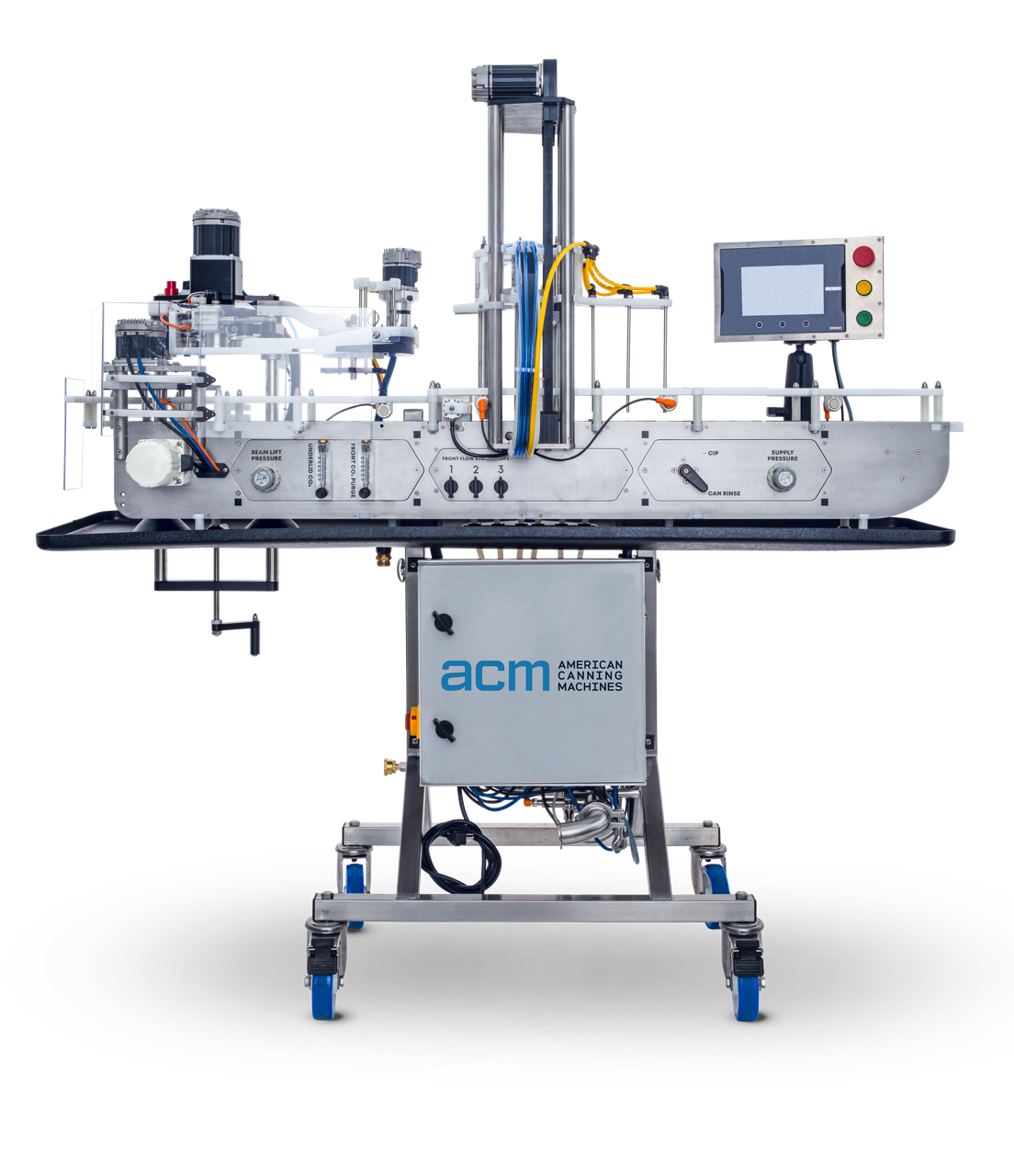

AT-3 | Atmospheric three-head Filler/Seamer
The Smart Choice for Flexible Growth
Fill Method: Atmospheric
Speed: 30 CPM
Footprint: 71” x 27”
Can Styles: Standard 211, Sleek 204, Slim 202
Changeover kits required to run multiple can styles
Can Fill Height: 87mm to 188mm / 8oz to 19.2oz standard 211-diameter fill volume cans
Carbonation: 2.8 volumes CO2 at 33F max
Temperature: 35F at 2.5 volumes CO2 max
Power:
- 5.4A @ 110-120 VAC, 50 Hz
- 5.4A @ 110-120 VAC, 60 Hz
- 2.7A @ 220-240 VAC, 50 Hz
- 2.7A @ 220-240 VAC, 60 Hz
Compressed Air:
- Pressure: 110-170 PSI
- Flow Rate: 7.8 SCFM (FAD) @ 100PSI (1 ACFM @ 100 PSI)
CO2:
- Pressure: 40-90 PSI
- Regulator Flow Coefficient:0.15 Cv or Higher
Air In: 1/4” Industrial QC Male
CO2 In: 1/4” Industrial QC Male
Product In: 1.5” Sanitary Tri-Clamp
Rinse Water In: 3/4” GHT Female
Drain Pain Out: 3/4” GHT Male
Tank Control CO2 Out: 1/4” Industrial QC Female
The AT-3, three-head, atmospheric filler/seamer, is built for small-to-mid scale operations that demand consistency and flexibility.
Delivering 30 cans per minute with precise fills and minimal waste, the AT-3 sets a new standard for scalable canning.
Start strong, grow smarter — with a platform designed to upgrade to 6 heads without changing your footprint or workflow.
Features
- Two to three operators design
- Compact, mobile setup
- Built-in head pressure control
- Pre-purge and underlid gassing
- Stainless steel fill valves for longevity and easy serviceability
- Precision-adjust flow restrictors
- Rotary-style lid applicator
- High-power, servo-driven seamer
- Ceramic bearings to extend maintenance intervals
- Hand-crank, seamer-height adjustment; rapid, toolless change
- Post-seam rinse and air knife clean
- Automatic CIP cycle
- Wash-down rated
- Optional changeover kits for standard, sleek and slim cans
Crafted in The USA
Every machine we offer is designed and manufactured with pride in Austin, Texas, showcasing the best of American ingenuity and quality. Opt for American Canning and support excellence in local manufacturing, guaranteeing high-performance equipment for your beverage needs.
